Solid State: relationships and examples

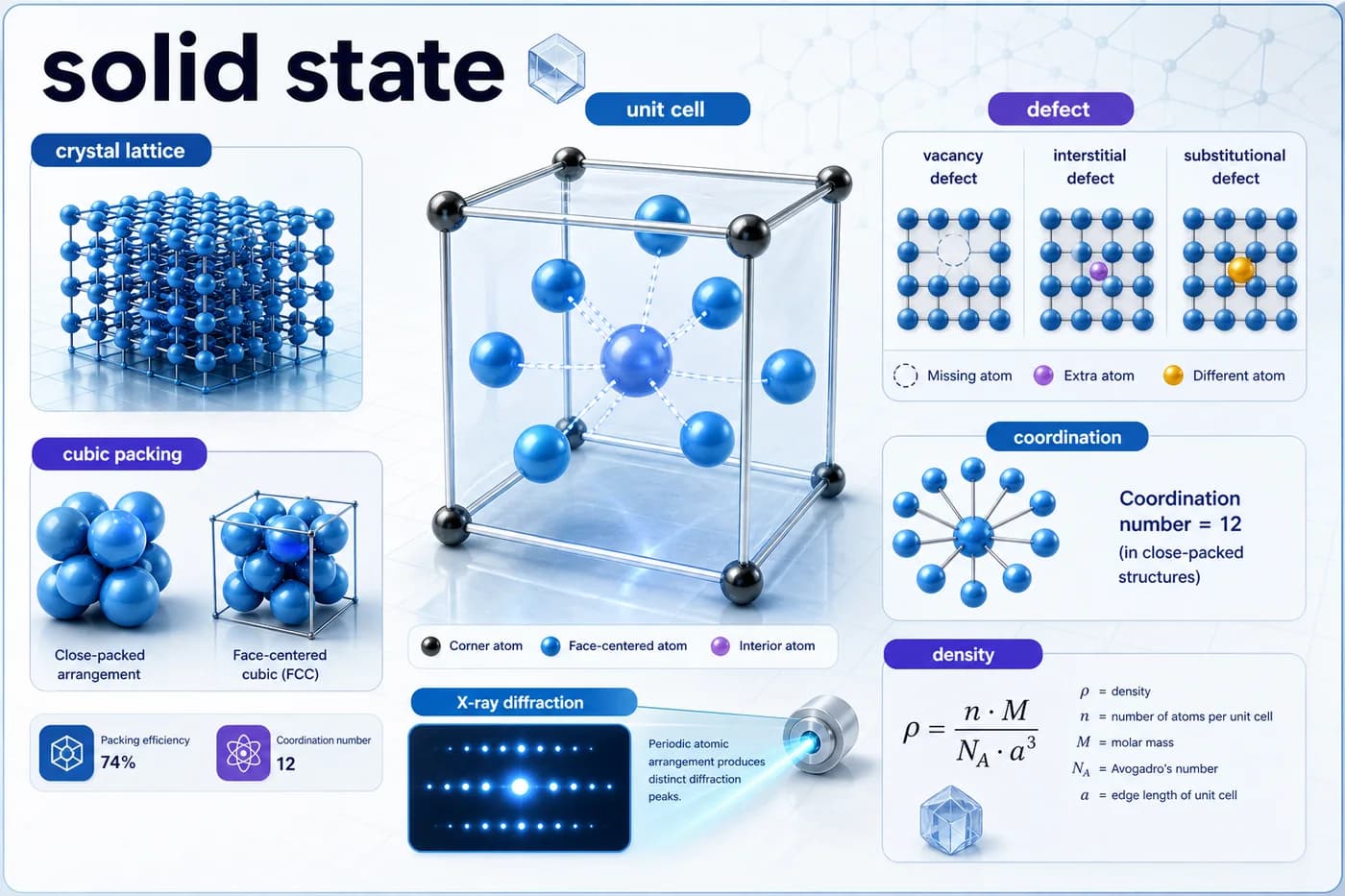

Connect shared lattice positions, contact geometry, density and crystal defects. Shared FCC sites: For a monatomic FCC cell, 8 corners contribute 1 atom and 6 faces contribute 3. Z=4 is a cell count, not the coordination number. Contact geometry: In touching hard-sphere models, BCC has √3a=4r and FCC has √2a=4r. Use the diagonal on which neighbours actually touch. Density and units: Use ρ=ZM/(Nₐa³). If M is in g/mol, convert a to cm before cubing. For example, 400 pm=4.00×10⁻⁸ cm. Defects and properties: Schottky vacancies reduce mass and usually density. A Frenkel displacement keeps the ion in the crystal, so density is nearly unchanged.Shared FCC sites
For a monatomic FCC cell, 8 corners contribute 1 atom and 6 faces contribute 3. Z=4 is a cell count, not the coordination number.Contact geometry
In touching hard-sphere models, BCC has √3a=4r and FCC has √2a=4r. Use the diagonal on which neighbours actually touch.
