Transport in Plants: relationships and examples

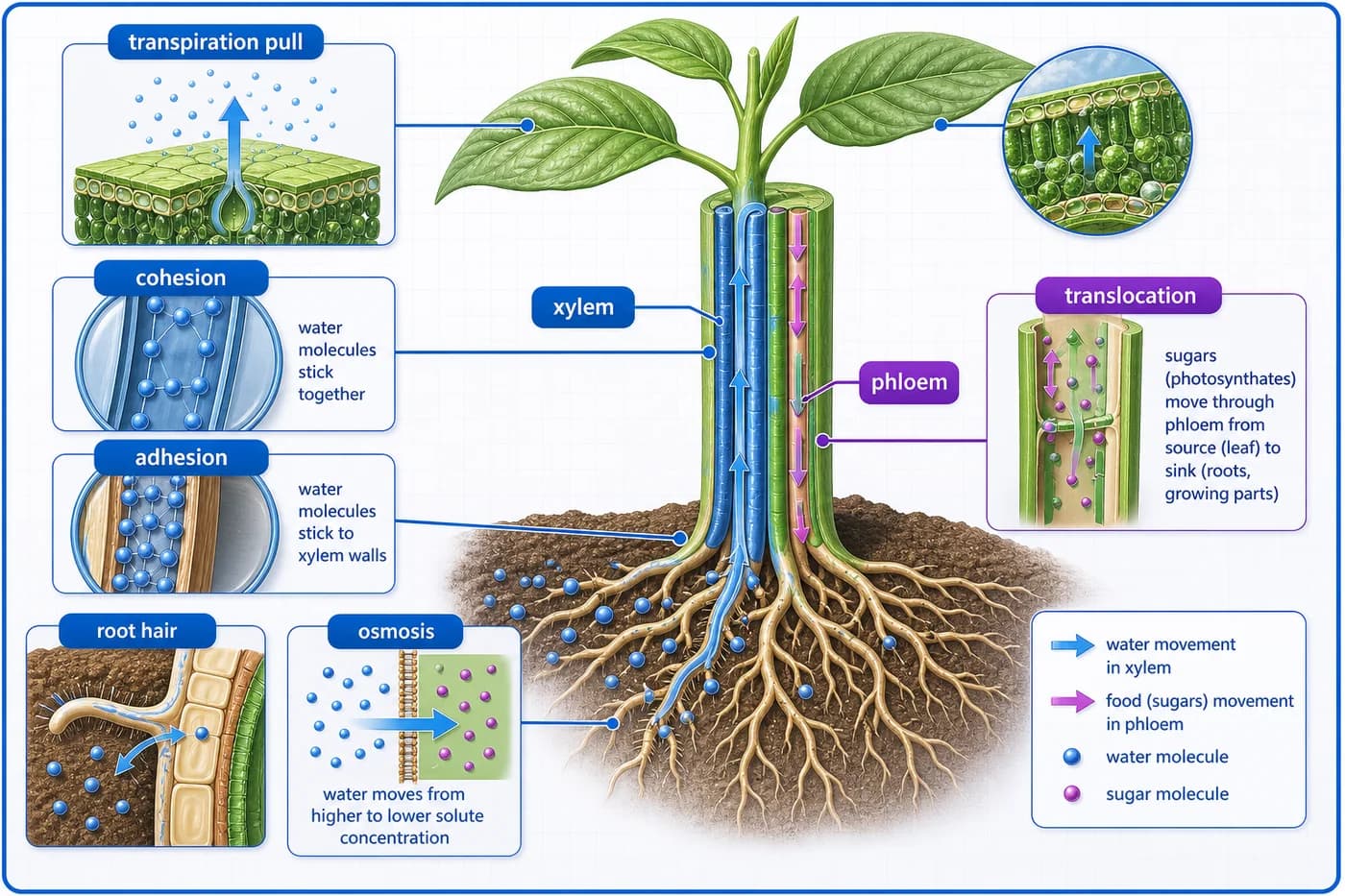

Connect water-potential gradients with the different mechanisms moving xylem water and phloem organic solutes. Compare total water potentials: With Ψs=−0.8 MPa and Ψp=+0.3 MPa, cell Ψ=−0.5 MPa. Water initially enters from surroundings at −0.2 MPa. Root pathways meet a barrier: Water moves through walls or cell interiors. The endodermal Casparian strip interrupts the apoplastic route and requires membrane crossing. Xylem flow follows tension: Transpiration from leaves can create tension. Cohesion helps transmit the pull through a continuous water column; roots do not simply pump all water upward. Phloem connects source and sink: Loading solutes can draw in water and raise pressure near a source. Pressure differences support bulk flow towards sinks that use or store assimilates.Compare total water potentials
With Ψs=−0.8 MPa and Ψp=+0.3 MPa, cell Ψ=−0.5 MPa. Water initially enters from surroundings at −0.2 MPa.Root pathways meet a barrier
Water moves through walls or cell interiors. The endodermal Casparian strip interrupts the apoplastic route and requires membrane crossing.
