Vectors and Three-dimensional Geometry: relationships and examples

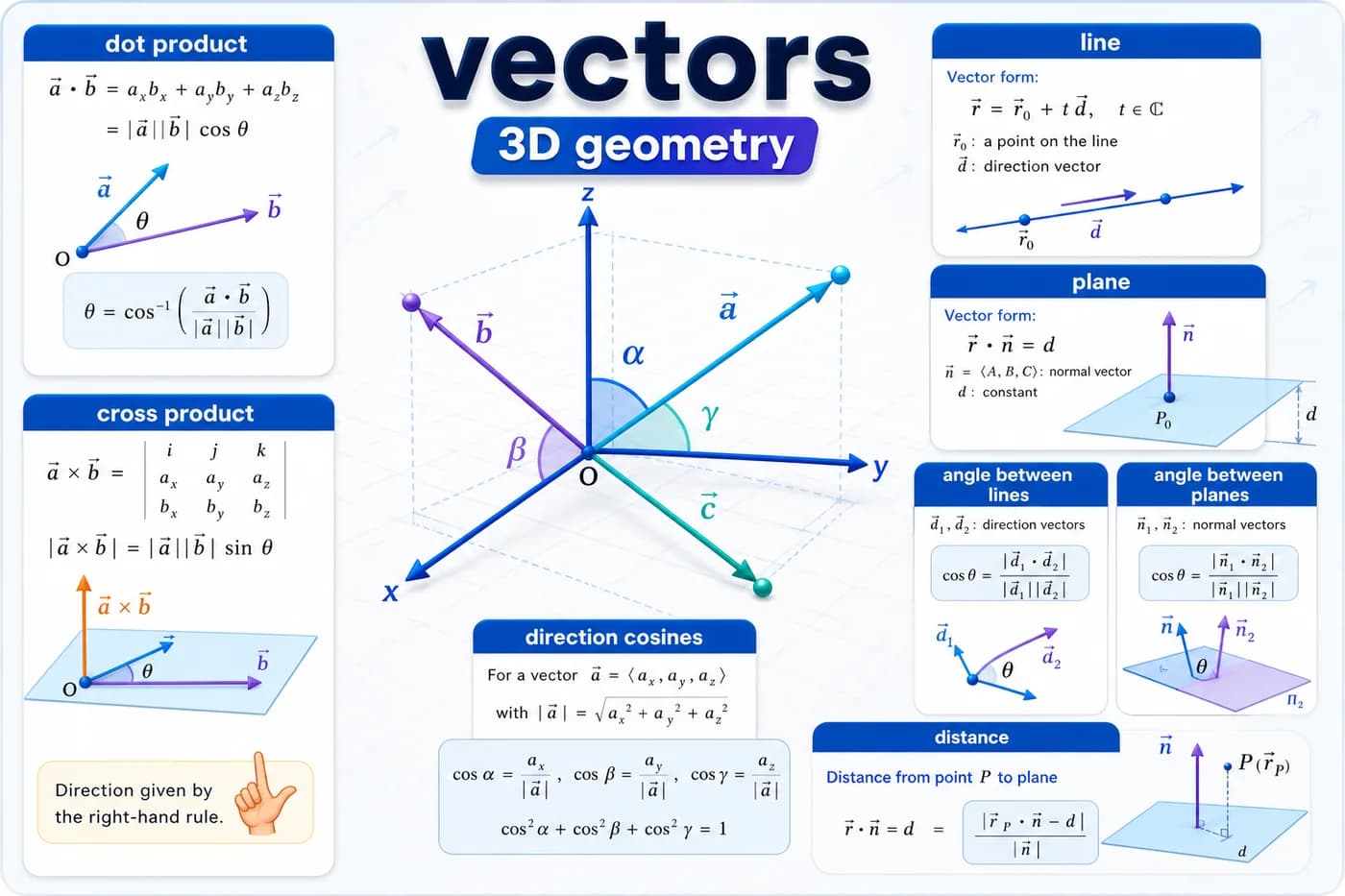

Vectors describe lines and normals without treating every pair of spatial lines as intersecting. Dot product: a·b=|a||b|cos θ. Nonzero perpendicular vectors have dot product 0; the zero vector has no defined direction angle. Line parameter: r=(1,2,0)+t(2,−1,3) uses one common t for x,y,z. Direction ratios are proportional, not necessarily unit length. Plane normal: Plane x+y+z=11 has normal (1,1,1). Its dot product with direction (2,−1,3) is 4, so the line is not parallel. Intersection check: Substitution gives 3+4t=11, hence t=2 and (5,0,6). Spatial lines can instead be skew: nonparallel does not guarantee intersection.Dot product
a·b=|a||b|cos θ. Nonzero perpendicular vectors have dot product 0; the zero vector has no defined direction angle.Line parameter
r=(1,2,0)+t(2,−1,3) uses one common t for x,y,z. Direction ratios are proportional, not necessarily unit length.
