Newton's Laws and Free Body Diagrams: relationships and examples

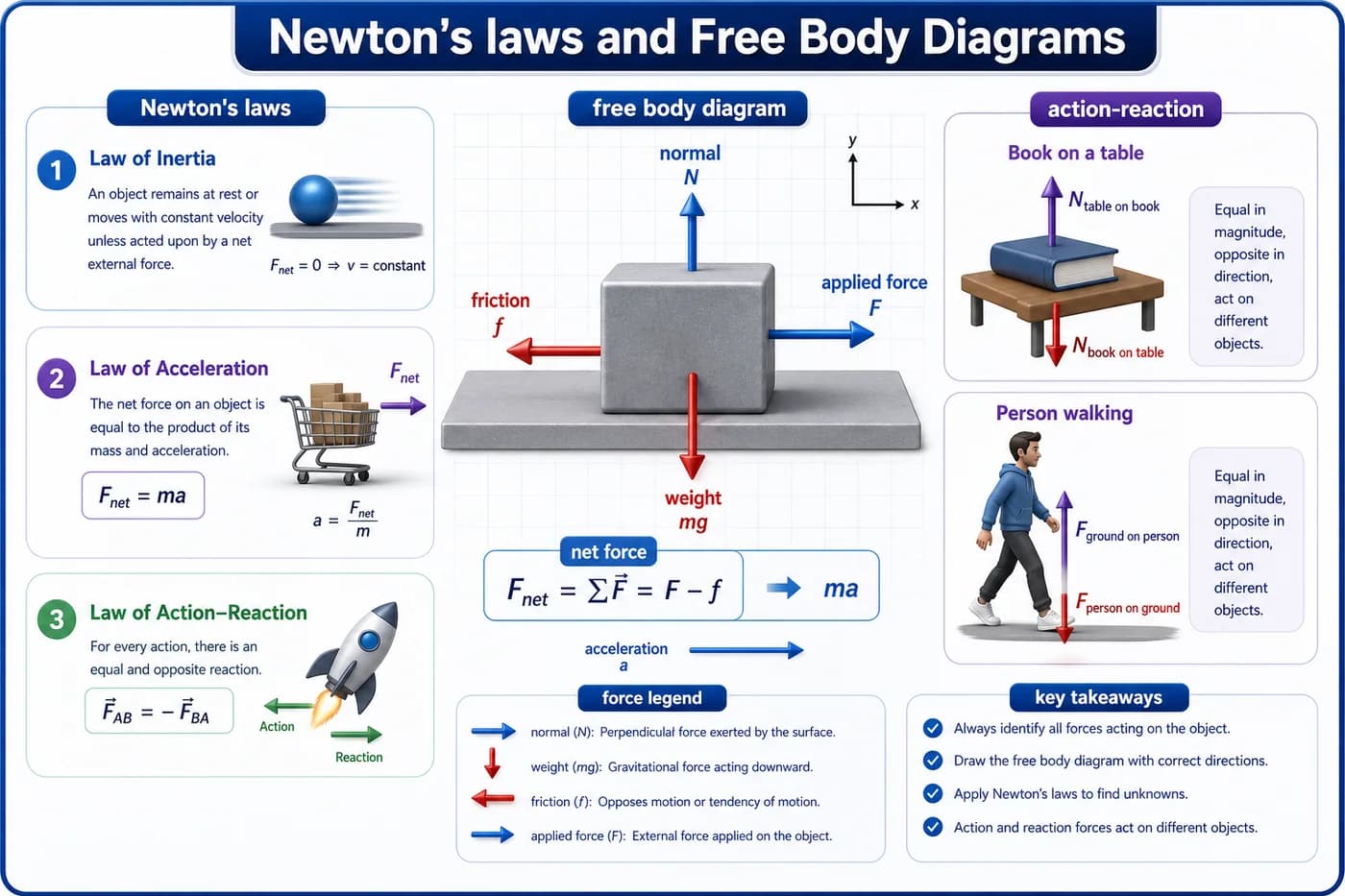

A free-body diagram links a chosen body’s interactions to its acceleration. Select body and frame: In an inertial frame, sum only forces on the selected body. For constant mass, the vector equation is ΣF=ma. Resolve normal and weight: For a 5 kg block on a frictionless 30° incline with g=10 m s⁻², N=mg cos30°≈43.3 N, not 50 N. Use the parallel equation: The down-slope weight component is 25 N, so the block accelerates down the incline at 5 m s⁻². Identify third-law partners: Earth pulls the block; the block pulls Earth. These forces act on different bodies. Weight and normal on one block are not that pair.Select body and frame
In an inertial frame, sum only forces on the selected body. For constant mass, the vector equation is ΣF=ma.Resolve normal and weight
For a 5 kg block on a frictionless 30° incline with g=10 m s⁻², N=mg cos30°≈43.3 N, not 50 N.
