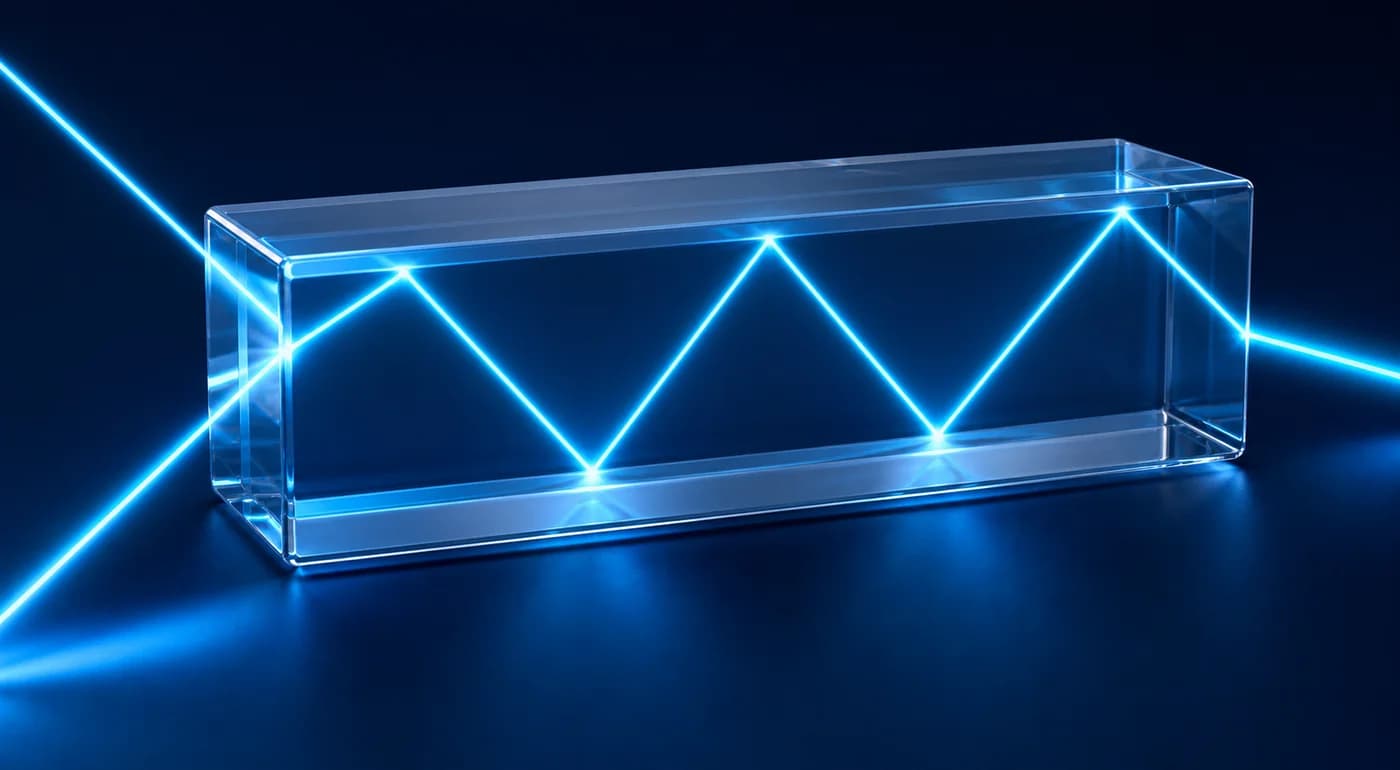

Total Internal Reflection: relationships and examples
Total internal reflection requires travel towards a lower refractive index and incidence strictly above the critical angle.Exam cue: At c the refracted ray is along the boundary. The usual condition for total internal reflection is incidence greater than c.
- 1Total Internal Reflection -> Index condition: Light must travel from a higher-index medium towards a lower-index medium, such as glass towards air.
- 2Total Internal Reflection -> Critical angle: At incidence c, the refracted angle is 90°. sin c = n(lower)/n(higher).
- 3Total Internal Reflection -> Beyond critical: When i > c, there is no propagating refracted ray into the second medium in the school ray model; reflection is total.
- 4Total Internal Reflection -> Applications: Optical fibres guide light by suitable index boundaries. Right-angle prisms can turn rays by internal reflection when the incidence condition is met.
