Refraction Through Lenses: relationships and examples
Thin-lens ray diagrams connect object position to image position, orientation and size. Use one stated sign convention consistently.Exam cue: Different conventions assign signs differently. State the convention and substitute signed distances into its matching formula.

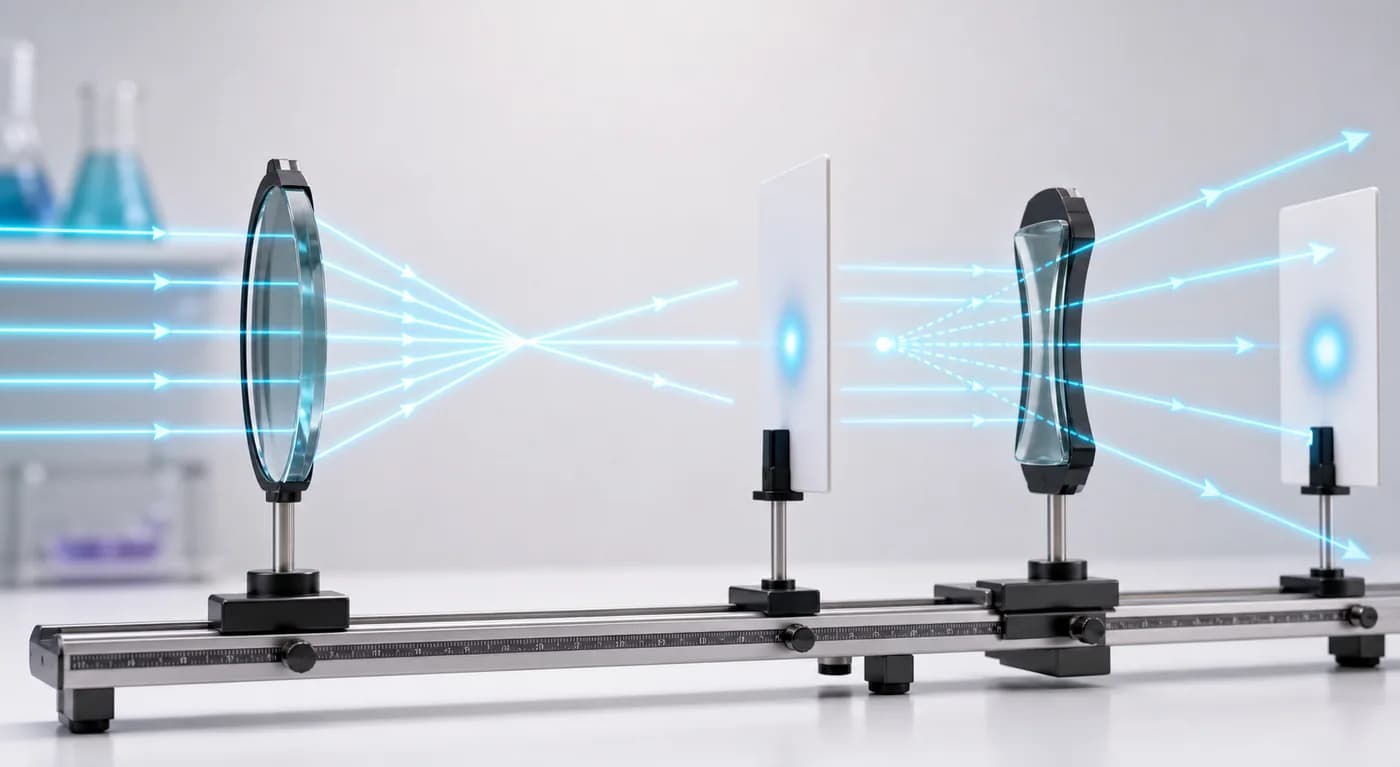

- 1Refraction Through Lenses -> Convex lens: In air, a convex lens converges paraxial rays parallel to its principal axis towards its principal focus.
- 2Refraction Through Lenses -> Concave lens: In air, a concave lens makes parallel rays diverge as if from a principal focus on the incident side.
- 3Refraction Through Lenses -> Cartesian convention: Take the optical centre as origin and incident light left-to-right as positive. A real object on the left has u < 0; a convex lens has f > 0.
- 4Refraction Through Lenses -> Formula and magnification: With this convention, 1/f = 1/v − 1/u and m = v/u. Negative m indicates an inverted image.
