Real and Apparent Depth: relationships and examples

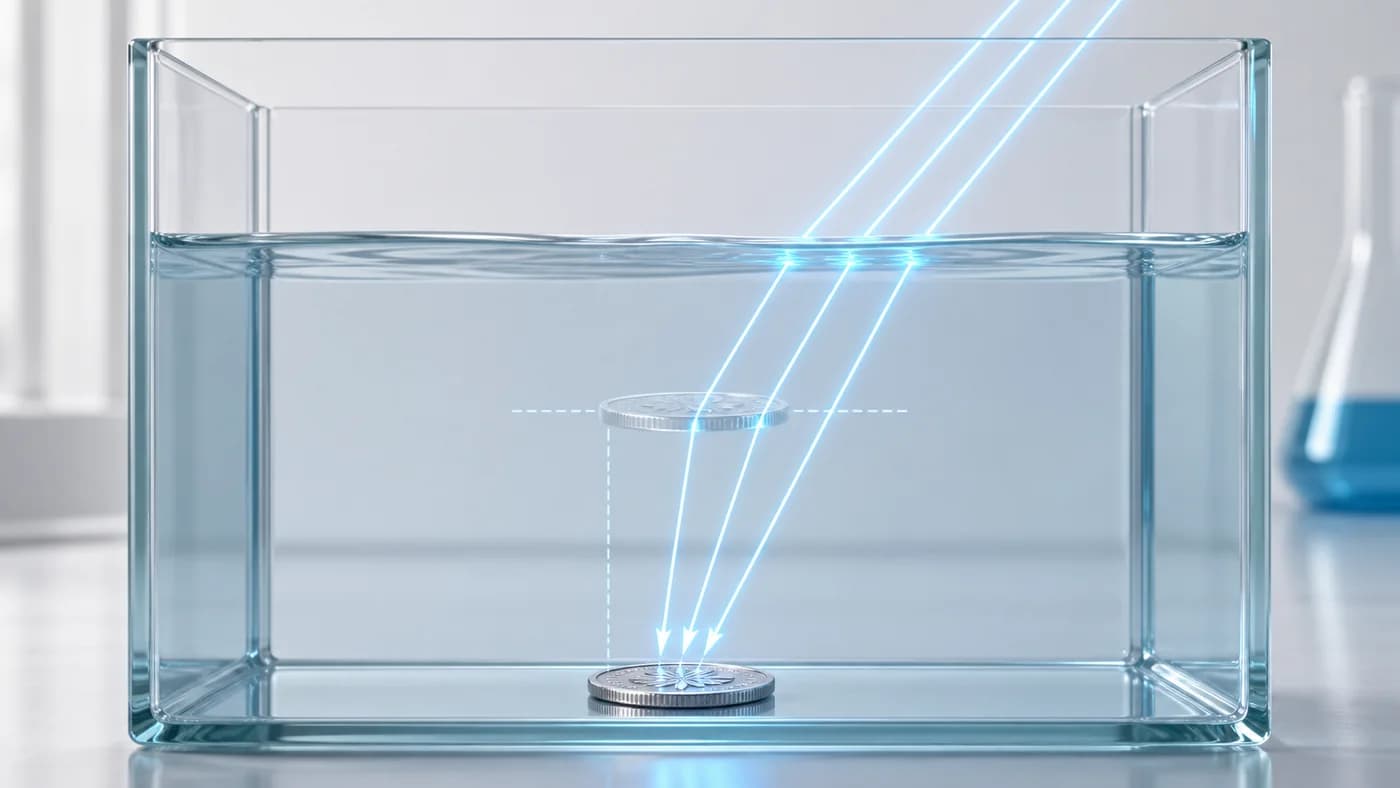

Refraction at a water–air surface makes an underwater object appear closer to the surface when viewed from air near the normal.Exam cue: The coin remains at its real depth. Refraction changes the direction of light reaching the eye and therefore its inferred position.
- 1Real and Apparent Depth -> Near-normal relation: For viewing from air into water near the normal, n(water relative to air) = real depth / apparent depth.
- 2Real and Apparent Depth -> Ray direction: Light leaving water for air bends away from the normal. The eye traces the emerging rays backwards in straight lines.
- 3Real and Apparent Depth -> Virtual position: The backwards extensions meet at an apparent position above the real object; rays do not actually originate there.
- 4Real and Apparent Depth -> Scope of the formula: The simple depth ratio assumes a flat surface and near-normal viewing. Strongly oblique viewing needs fuller ray geometry.
