Force on a Current-Carrying Conductor: relationships and examples

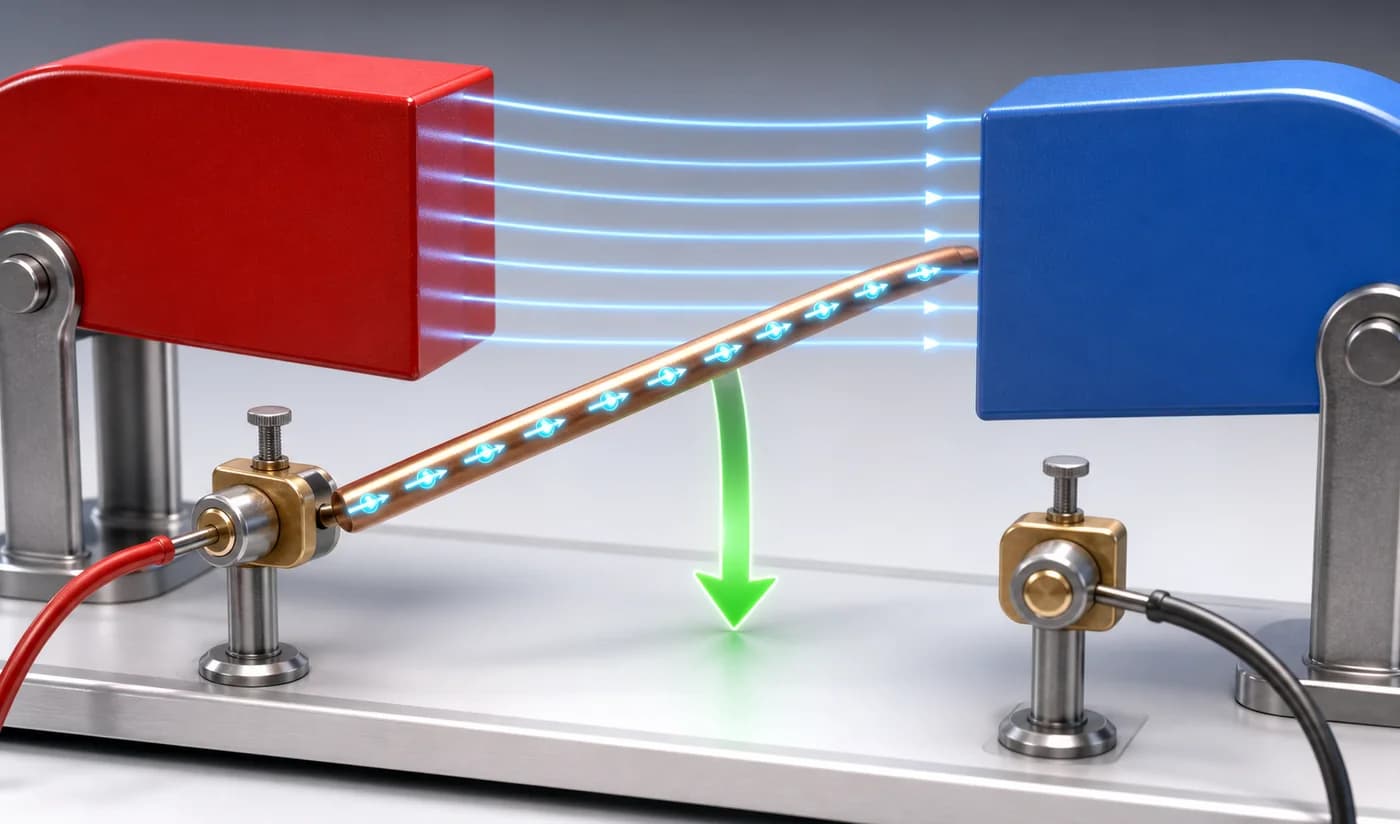

A current-carrying conductor can experience a magnetic force perpendicular to both the current and the field.Exam cue: The motor-effect force is perpendicular to the field and current; its direction follows the appropriate hand rule.
- 1Force on a Current-Carrying Conductor -> Magnitude: For a straight length L in uniform field B, F = BIL sin θ, where θ is the angle between current direction and field.
- 2Force on a Current-Carrying Conductor -> Maximum and zero: The force is maximum at 90° and zero when current and field are parallel.
- 3Force on a Current-Carrying Conductor -> Direction: Fleming's left-hand rule connects field, conventional current and force direction in the motor effect.
- 4Force on a Current-Carrying Conductor -> Reversals: Reversing either current or field reverses the force. Reversing both leaves the force direction unchanged.
