Magnetic Field and Field Lines: relationships and examples
Magnetic field lines represent direction and relative field strength; they are a drawing model, not physical threads.Exam cue: A field has one direction at a point. Crossing lines would assign two directions, so closer spacing represents stronger fields instead.
- 1Magnetic Field and Field Lines -> Field direction: A small compass's north-seeking end indicates the local magnetic field direction.

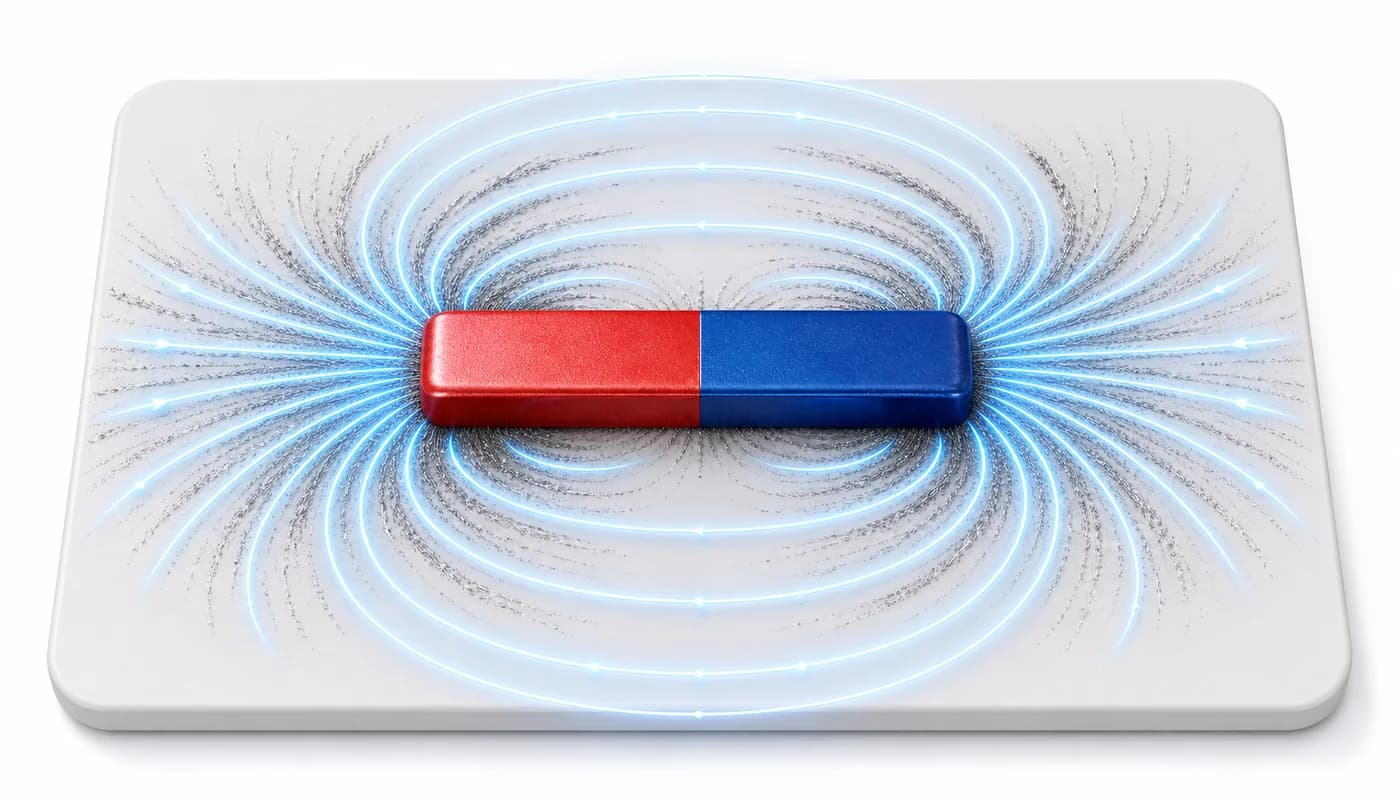

- 2Magnetic Field and Field Lines -> Bar magnet: Outside a bar magnet, field lines run from north to south. They continue through the magnet to form closed loops.
- 3Magnetic Field and Field Lines -> Straight current: A straight current-carrying wire has circular field lines around it. The right-hand grip rule relates conventional current to field direction.
- 4Magnetic Field and Field Lines -> Solenoid: A current-carrying solenoid has a bar-magnet-like pattern. Reversing current reverses its magnetic poles.
