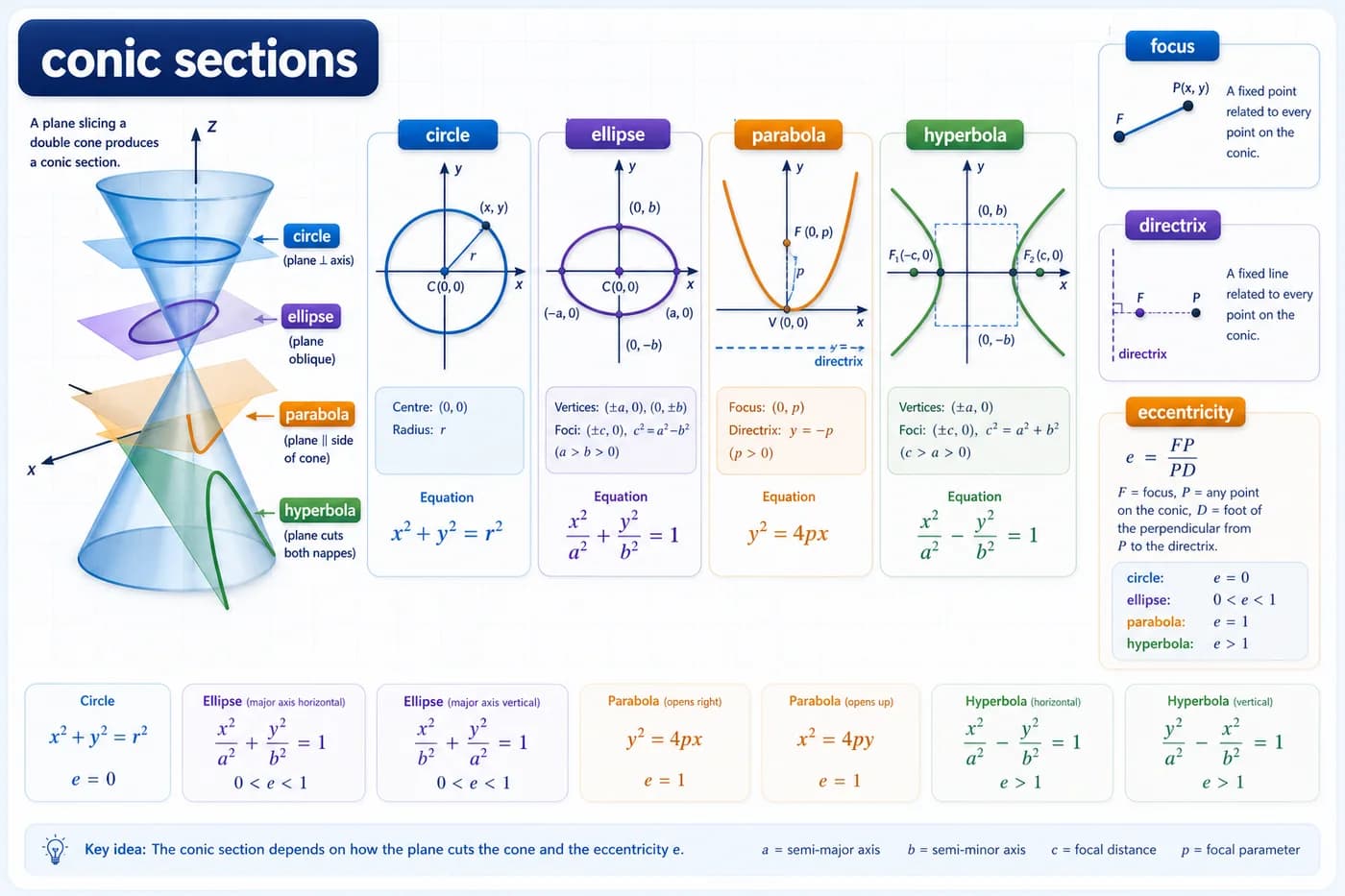

Conic Sections: relationships and examples
Signs, axis direction and focal distances distinguish the standard conic models. Circle and ellipse: x²/25+y²/9=1 is an ellipse with a=5,b=3,c=4. Foci are (±4,0); eccentricity c/a=4/5. Hyperbola sign and axis: y²/16−x²/9=1 opens along y. Its foci are (0,±5) and asymptotes y=±(4/3)x. Parabola focus-directrix: For y²=12x=4ax, a=3. Focus is (3,0), directrix x=−3 and vertex (0,0). Check a geometric point: At P=(3,6) on y²=12x, distance to focus is 6 and to directrix is 6. The equal-distance condition holds.Circle and ellipse
x²/25+y²/9=1 is an ellipse with a=5,b=3,c=4. Foci are (±4,0); eccentricity c/a=4/5.Hyperbola sign and axis
y²/16−x²/9=1 opens along y. Its foci are (0,±5) and asymptotes y=±(4/3)x.
