Comparison map
Measurement Instruments: relationships and examples

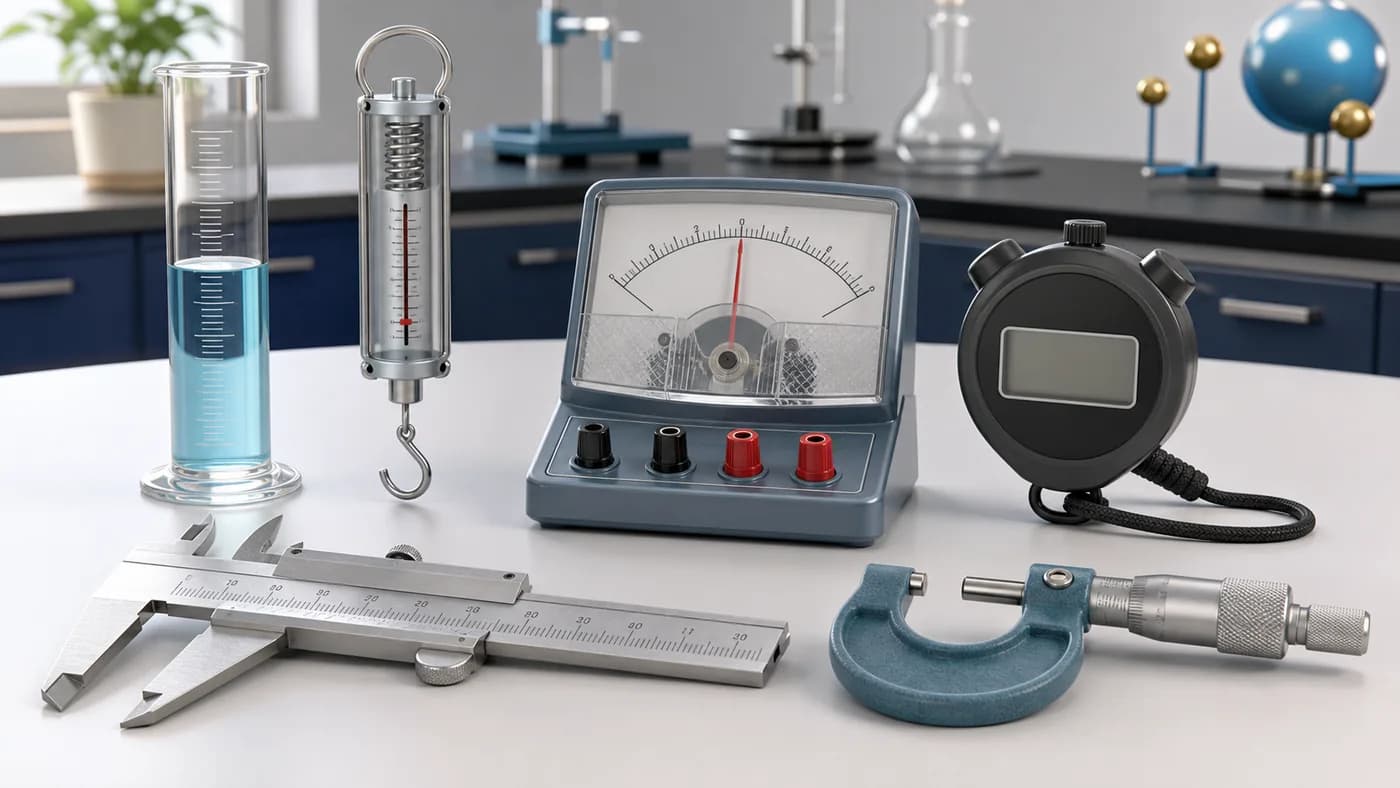

Interpret scale contributions before correcting a reference offset.Exam cue: Connect the quantities with the stated conditions; use the worked visual to check the explanation.
- 1Measurement Instruments -> Least count: Pitch divided by circular divisions gives the micrometer scale increment.
- 2Measurement Instruments -> Indicated reading: Sleeve plus circular contribution gives the displayed measurement.
- 3Measurement Instruments -> Signed correction: An indicated +0.02 mm at true zero requires a −0.02 mm correction.
- 4Measurement Instruments -> Precision limit: Repeats do not remove a constant offset or create finer instrument resolution.
