Comparison map

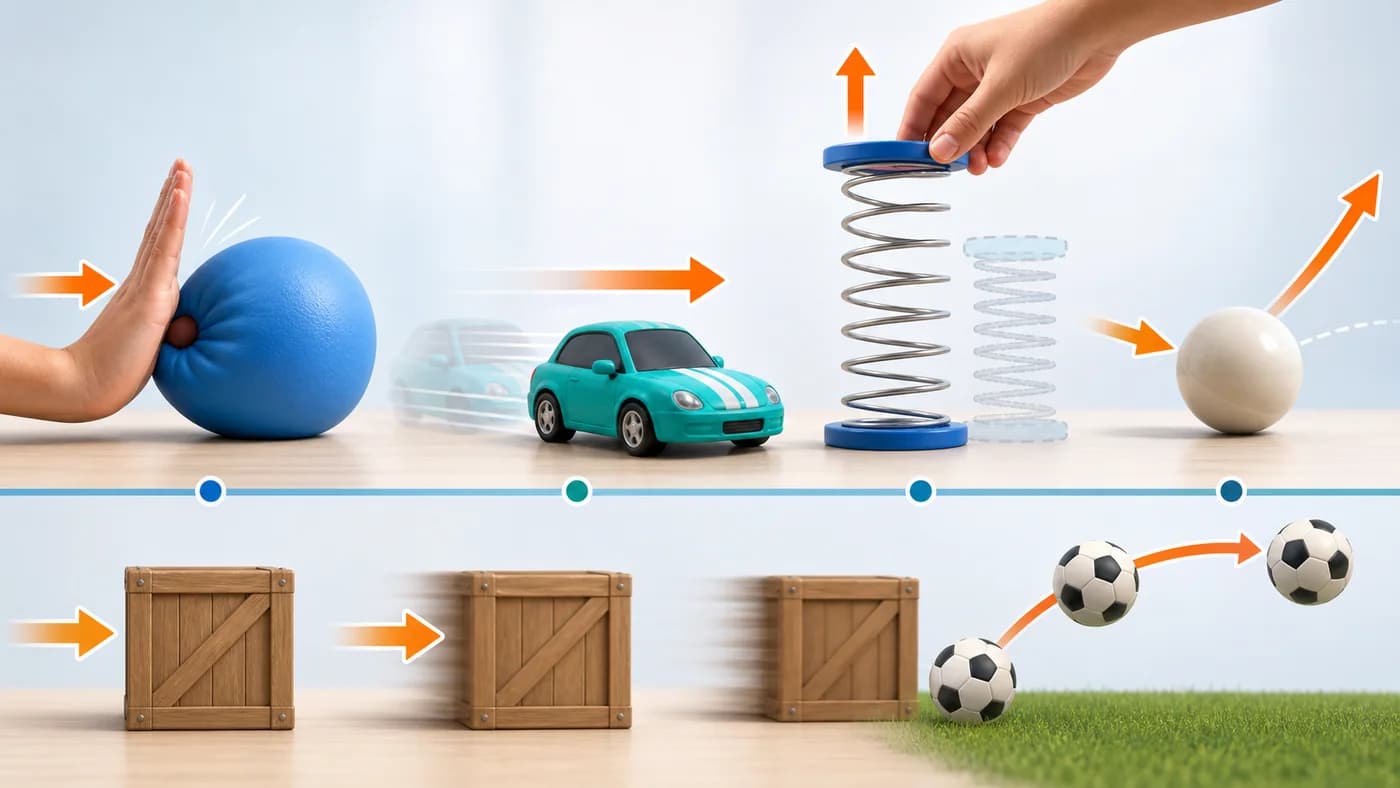

Effects of Force: relationships and examples
Explain a motion or shape change using the interactions on a named object.Exam cue: State the object, each interaction and the resultant before predicting its response.
- 1Effects of Force -> Velocity change: An unbalanced resultant can change speed, direction or both. Circular motion needs a changing velocity even at constant speed.
- 2Effects of Force -> Shape change: A force can stretch, compress or bend an object. A deformation does not require its whole body to travel away.
- 3Effects of Force -> Balance: Opposing forces can give zero resultant without the object being stationary. Distinguish initial motion from change in motion.
- 4Effects of Force -> Object boundary: Only combine forces acting on the same object. The forces in an interaction pair act on different objects and do not cancel in one body's diagram.
