Coordinate Axes and Planes: relationships and examples

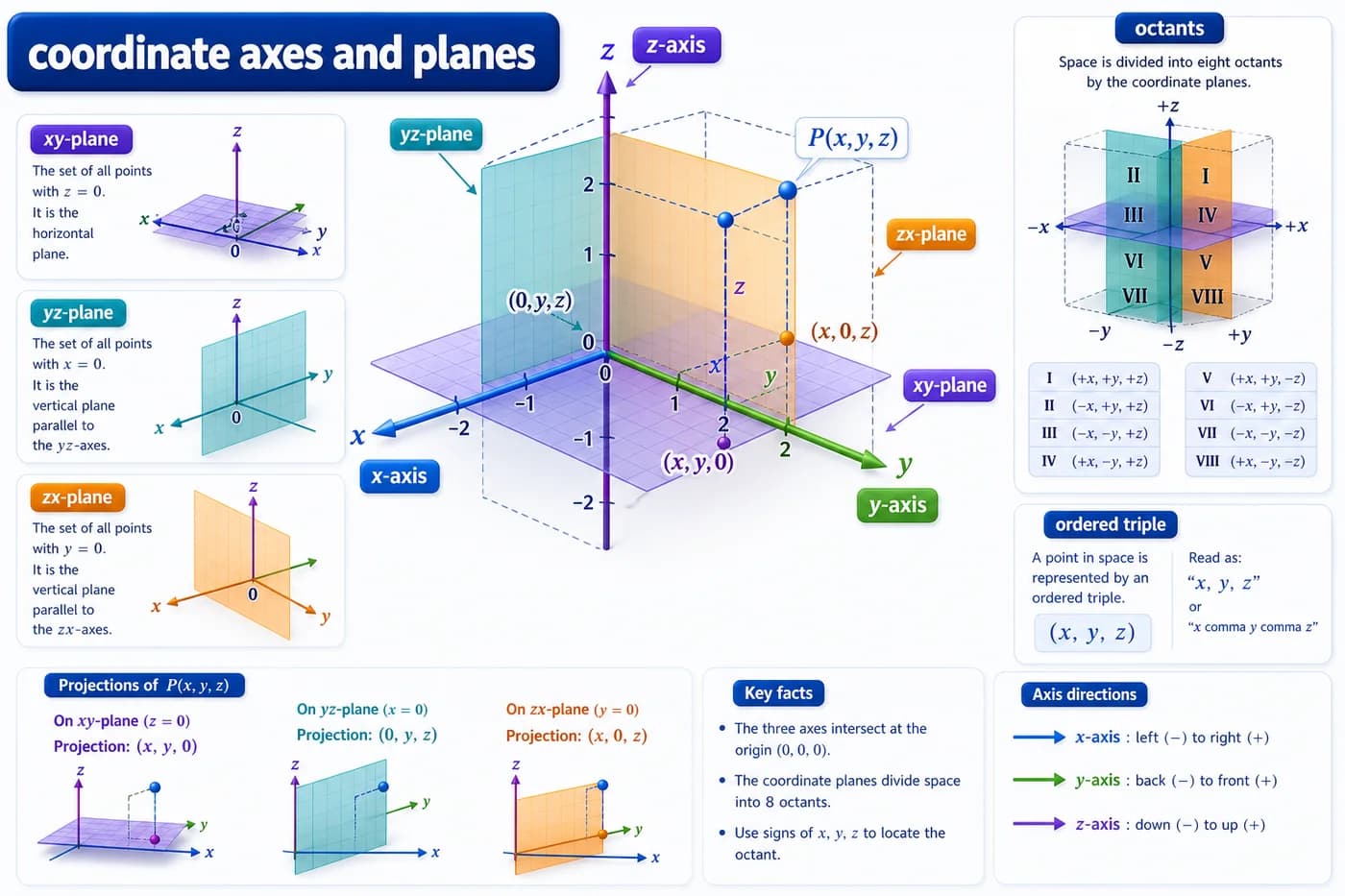

Three coordinates locate a point; each coordinate plane sets one coordinate to zero. Axis and plane conditions: The xy-plane has z=0, yz-plane x=0 and zx-plane y=0. On the z-axis both x and y are zero. Perpendicular projection: P=(1,−2,3) projects to (1,−2,0) on the xy-plane. Only the coordinate normal to that plane changes. Distance to a plane: Distances from P to the xy-, yz- and zx-planes are |3|=3, |1|=1 and |−2|=2 respectively. Signs and boundaries: A point with no zero coordinates belongs to one of eight octants. A point on a coordinate plane lies on an octant boundary.Exam cue: Name the plane before dropping a coordinate; signs locate a region, but distances use magnitudes.
- 1Coordinate Axes and Planes -> Axis and plane conditions: The xy-plane has z=0, yz-plane x=0 and zx-plane y=0. On the z-axis both x and y are zero.
- 2Coordinate Axes and Planes -> Perpendicular projection: P=(1,−2,3) projects to (1,−2,0) on the xy-plane. Only the coordinate normal to that plane changes.
- 3Coordinate Axes and Planes -> Distance to a plane: Distances from P to the xy-, yz- and zx-planes are |3|=3, |1|=1 and |−2|=2 respectively.
- 4Coordinate Axes and Planes -> Signs and boundaries: A point with no zero coordinates belongs to one of eight octants. A point on a coordinate plane lies on an octant boundary.
