Moving Averages: relationships and examples

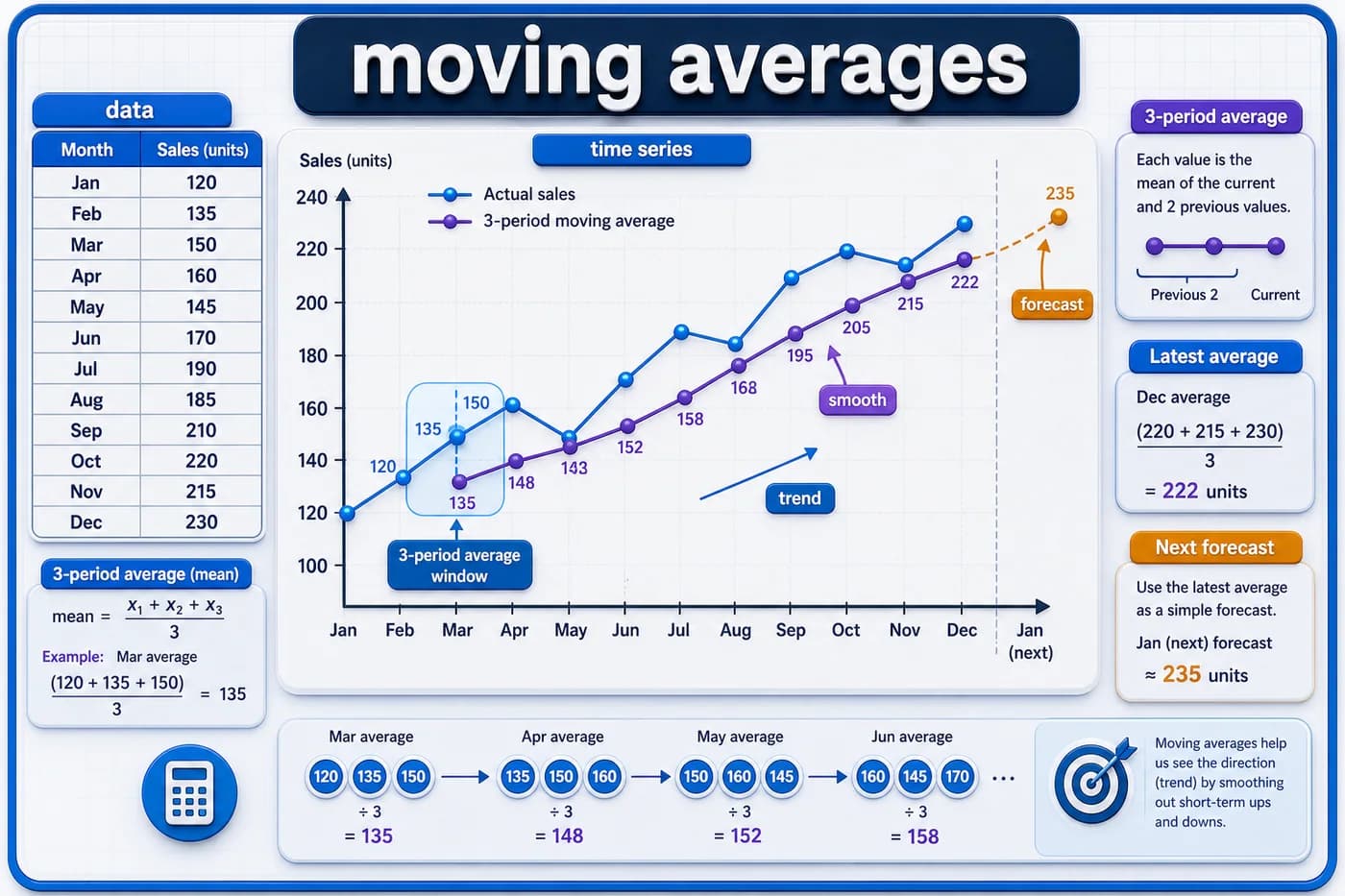

A moving average smooths a time series; its time placement depends on window length. Slide a fixed window: For times 1 to 5 with values 10,12,14,16,18, three-term means are 12,14,16 as the window moves one time at a step. Odd-window placement: The three-term means sit at their middle times 2,3,4. No three-term centred mean exists at the two endpoints. Even windows need centring: Four-term means are 13 at time 2.5 and 15 at time 3.5. Their average, 14, is centred at time 3. Smooth is not predict: Smoothing removes some short variation and loses endpoint values. A future forecast needs an explicit model beyond this calculation.Exam cue: Keep original time labels and state whether the requested average is centred or trailing.
- 1Moving Averages -> Slide a fixed window: For times 1 to 5 with values 10,12,14,16,18, three-term means are 12,14,16 as the window moves one time at a step.
- 2Moving Averages -> Odd-window placement: The three-term means sit at their middle times 2,3,4. No three-term centred mean exists at the two endpoints.
- 3Moving Averages -> Even windows need centring: Four-term means are 13 at time 2.5 and 15 at time 3.5. Their average, 14, is centred at time 3.
- 4Moving Averages -> Smooth is not predict: Smoothing removes some short variation and loses endpoint values. A future forecast needs an explicit model beyond this calculation.
