Equilibrium and Centre of Gravity: relationships and examples
A stationary rigid body needs both balanced forces and balanced moments. Its centre of gravity helps explain stability.Exam cue: Zero resultant moment and zero resultant force are separate conditions for static equilibrium. Check both.
- 1Equilibrium and Centre of Gravity -> Translational equilibrium: The resultant force is zero. For a supported stationary object, upward support forces balance its weight.
- 2Equilibrium and Centre of Gravity -> Rotational equilibrium: The sum of clockwise moments equals the sum of anticlockwise moments about any chosen point.

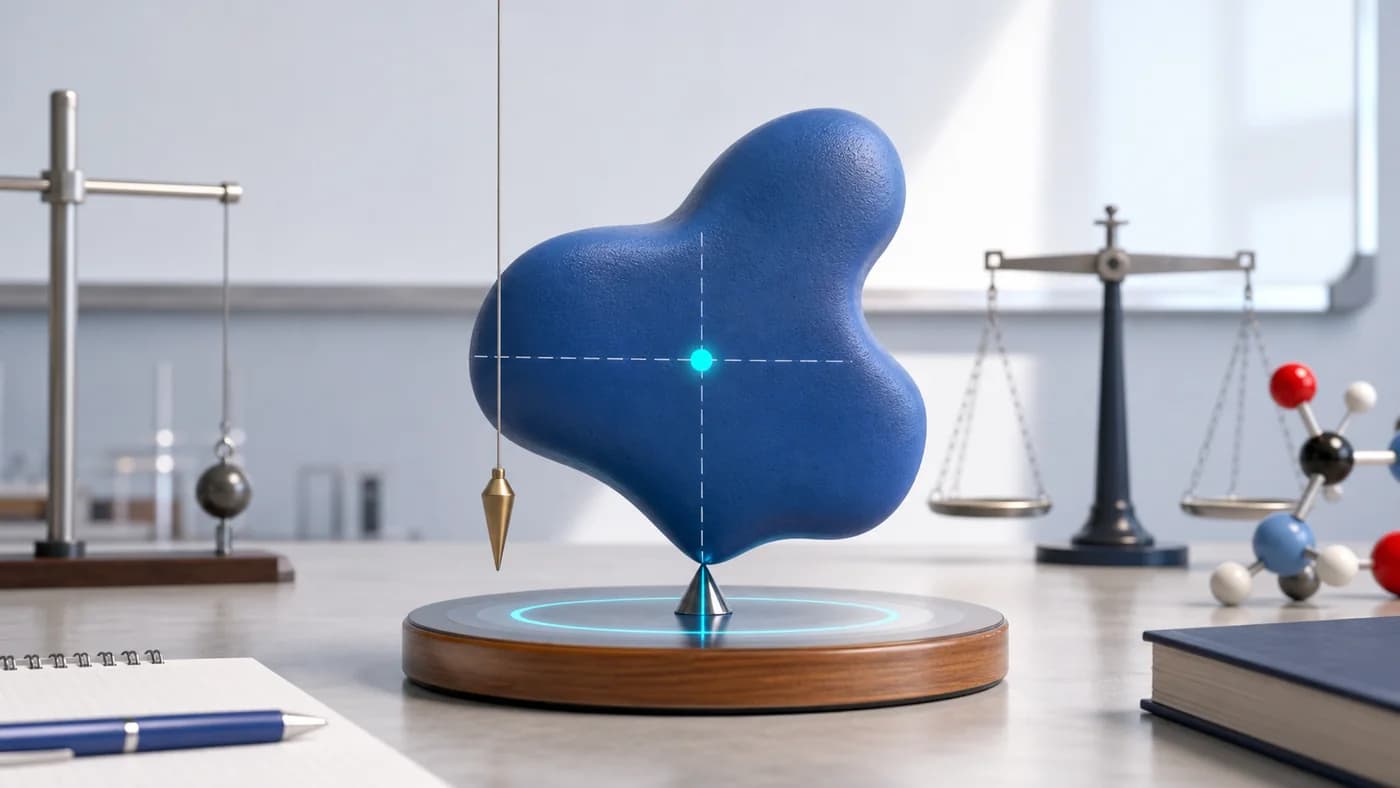

- 3Equilibrium and Centre of Gravity -> Centre of gravity: In a uniform gravitational field, the whole weight may be treated as acting through the centre of gravity.
- 4Equilibrium and Centre of Gravity -> Stability: A lower centre of gravity and a wider base generally improve stability. Toppling begins when the weight's line of action lies outside the support base.
