Electromagnetic Induction: relationships and examples
An emf is induced when the magnetic flux linked with a circuit changes. A current also needs a conducting closed path.Exam cue: Changing flux linkage is required. A constant field in an unchanging arrangement does not continuously induce an emf.

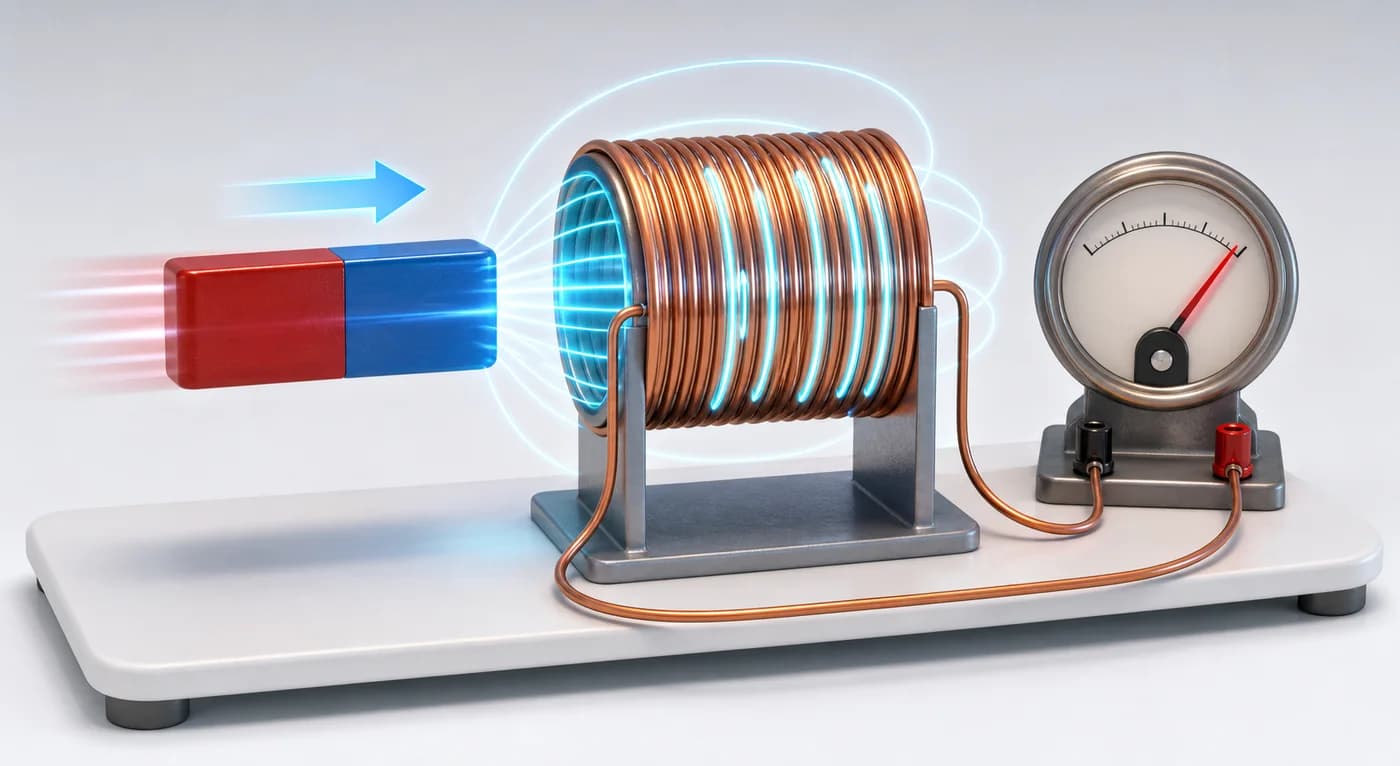

- 1Electromagnetic Induction -> Changing linkage: Moving a magnet relative to a coil, changing coil orientation or changing a nearby current can change linked magnetic flux.
- 2Electromagnetic Induction -> Rate matters: A faster change in flux linkage gives a larger induced emf; more linked turns can increase the effect.
- 3Electromagnetic Induction -> Lenz's law: The induced current's magnetic effect opposes the change that produces it, consistent with conservation of energy.
- 4Electromagnetic Induction -> Open versus closed: An open coil can have induced emf across its ends but no sustained conduction current around a broken circuit.
