Comparison map
Electric Current and Circuits: relationships and examples

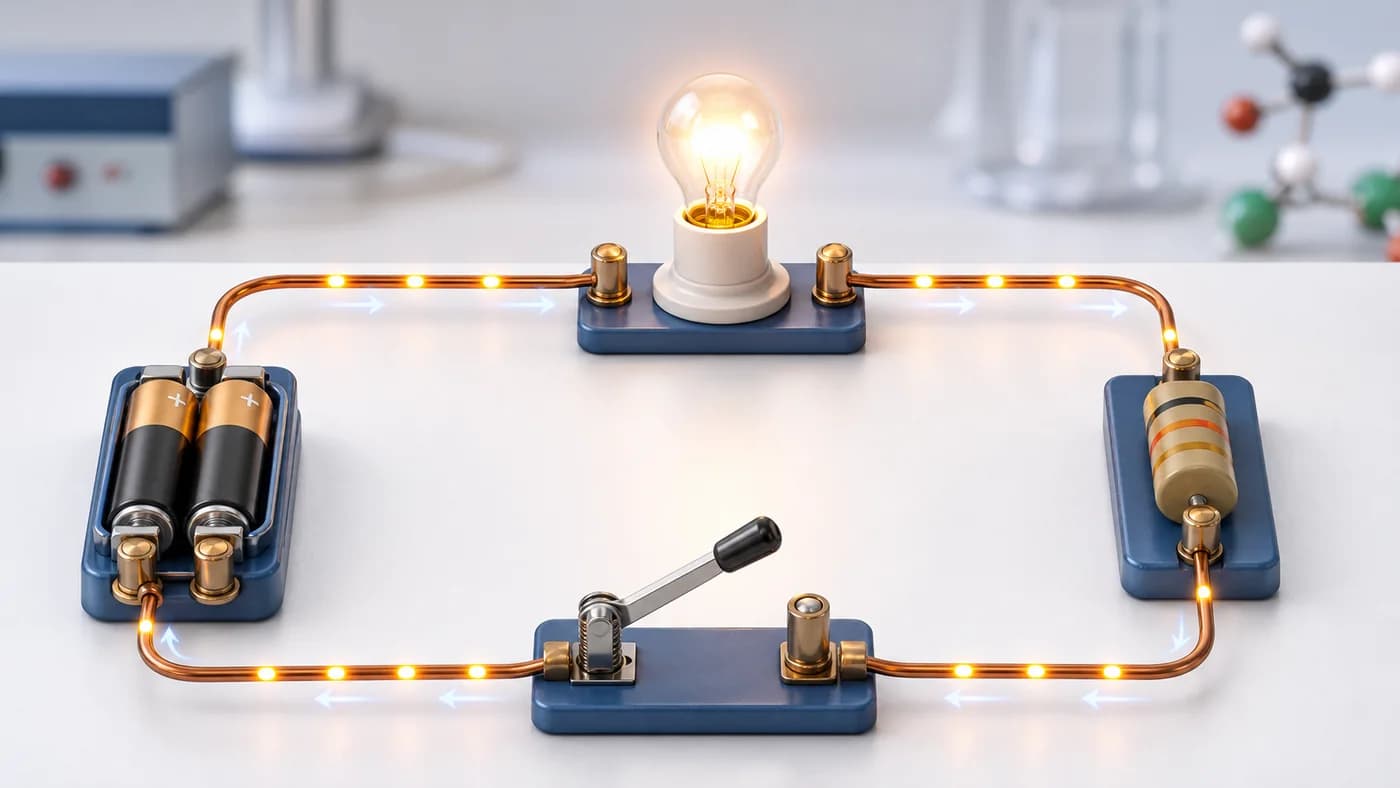

Trace one series path and distinguish current measurement from potential difference.Exam cue: Use low-voltage classroom models; an open switch must break the only main conducting path.
- 1Electric Current and Circuits -> Series current: An ammeter in the main loop measures the charge rate. In steady operation that rate is the same before and after the lamp.
- 2Electric Current and Circuits -> Voltage connection: An ideal voltmeter connects across the lamp terminals; it does not replace the series current path or act as a conducting short circuit.
- 3Electric Current and Circuits -> Numerical ledger: At 0.20 A for 30 s, 6 C passes. A 3.0 V lamp potential difference gives 18 J transferred in the lamp.
- 4Electric Current and Circuits -> Switch effect: Opening the only main loop stops steady current after switching effects settle. Charge is not consumed by the lamp.
