Comparison map
Transformers: relationships and examples

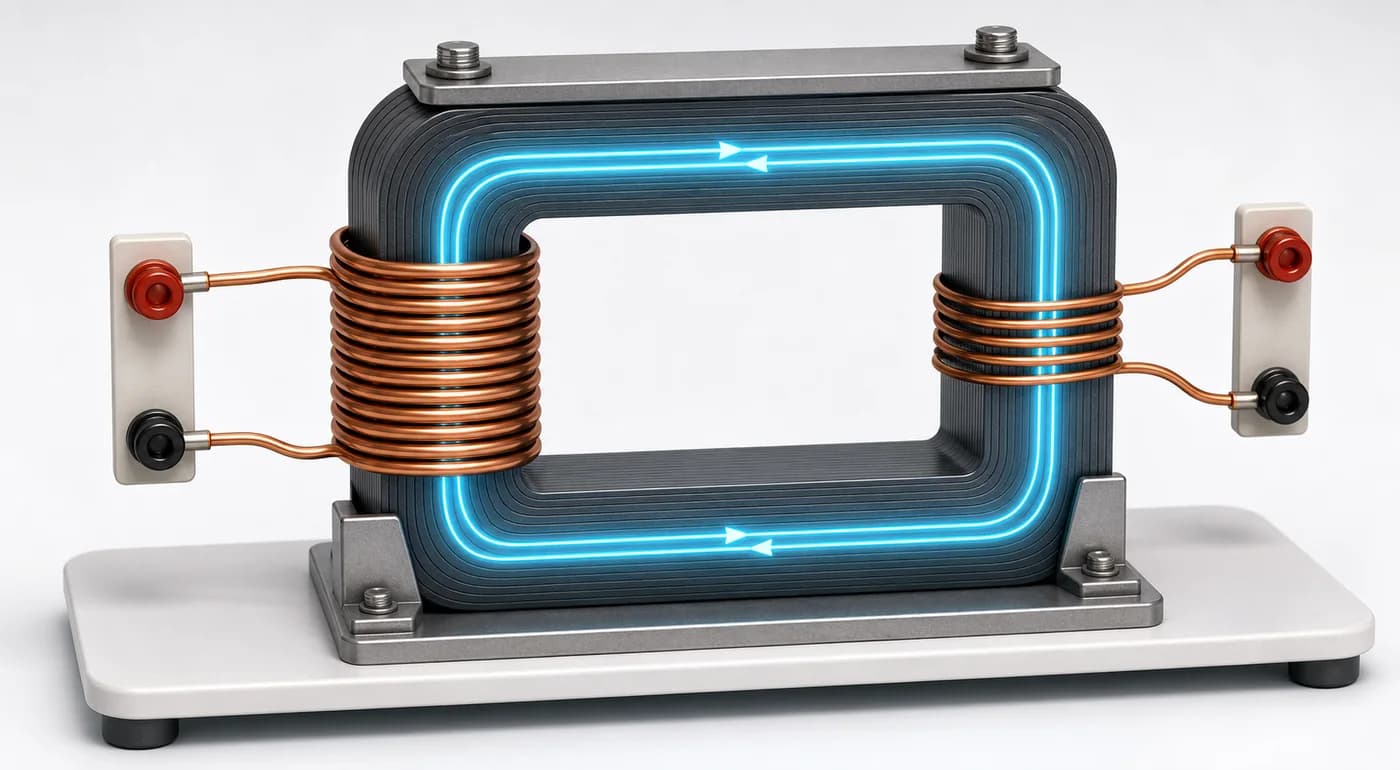

A transformer transfers energy between coils through changing core flux. The turns ratio sets the ideal voltage ratio.Exam cue: The ideal output current decreases as voltage increases, preserving power; real transformers also dissipate some energy.
- 1Transformers -> Changing primary current: Alternating current in the primary produces changing magnetic flux in the core that links the secondary.
- 2Transformers -> Turns and voltage: For an ideal transformer, Vₛ/Vₚ = Nₛ/Nₚ using corresponding rms AC voltages.
- 3Transformers -> Current and power: Ideally VₚIₚ = VₛIₛ; stepping voltage up steps current down for the same transferred power.
- 4Transformers -> Practical limits: Winding resistance, core heating and flux leakage reduce efficiency. Steady DC does not maintain secondary emf in a stationary transformer.
